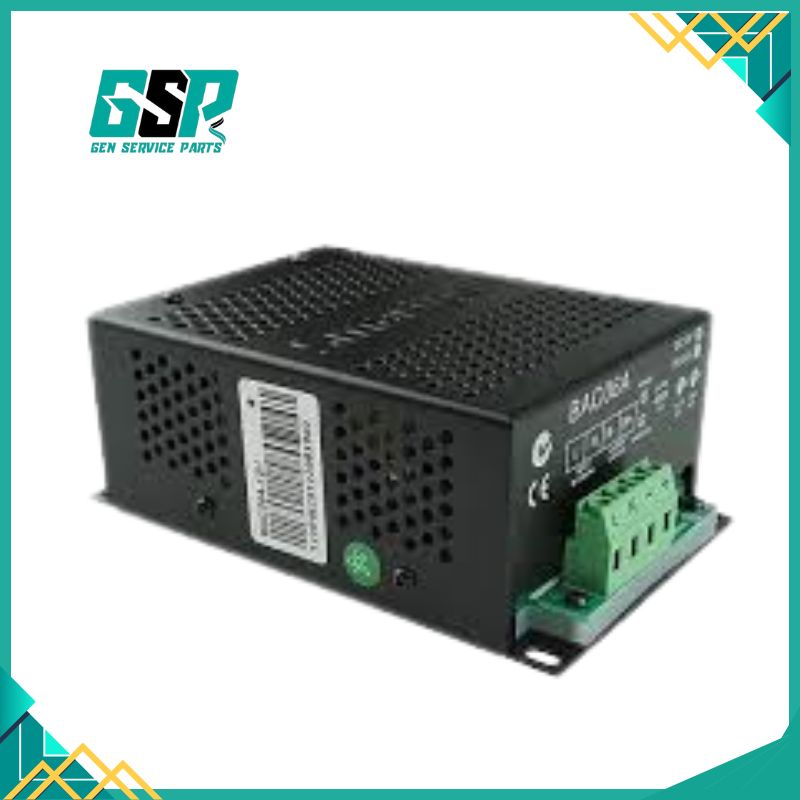

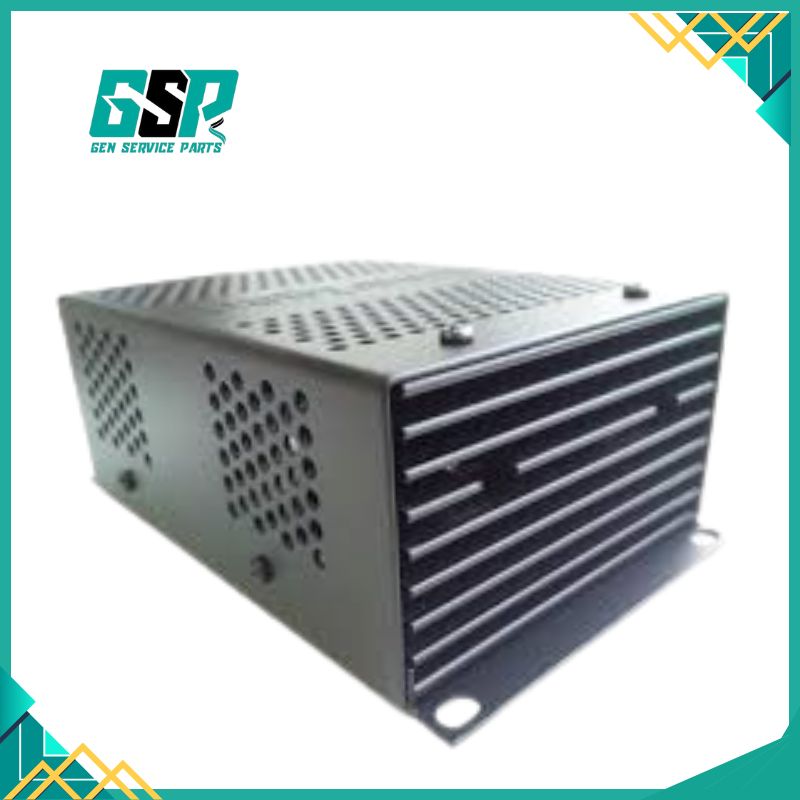

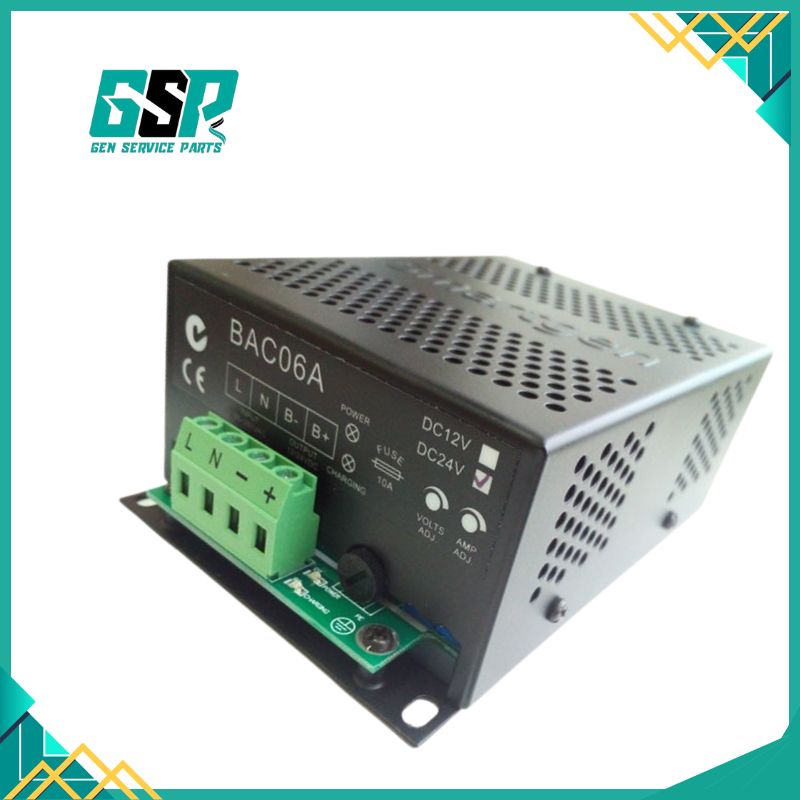

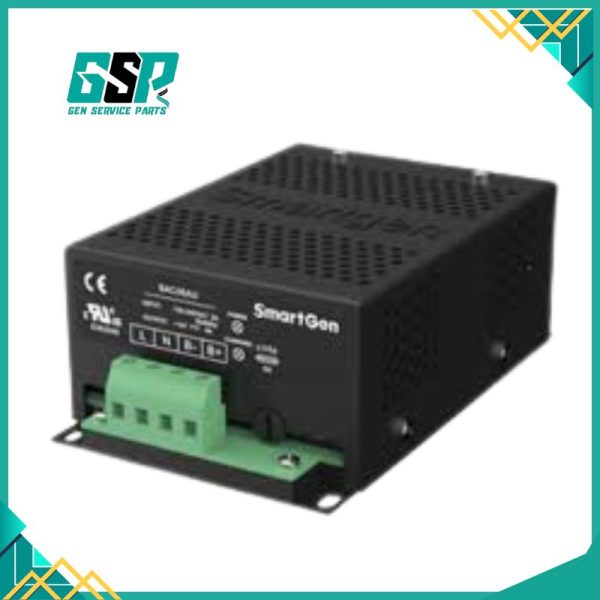

SmartGen Generator Battery Charger- BAC06A-24V
Technical Specifications:
- Battery Voltage: 12V/24V
- Max. Charging Current: 6A/3A
- Rated Input Voltage: (100~240)V
- Max. Input Voltage Range: (90~280)V
- AC Input Frequency: (50/60)Hz
- Max. Input Current: 2A
- No-Load Power Consumption: <3W
- Operating Mode: Two segments
- Maximum Efficiency: 83%/85%
- Operating Temperature: (-30~+55)℃
- Storage Temperature: (-40~+85)℃
- Net Weight: 0.65 kg
- Case Dimensions: 1439655 mm
Product Overview: The BAC06 series switching battery charger incorporates advanced switch power components, tailored for charging lead-acid starting batteries based on their characteristics. This charger is optimized for lead-acid battery float charging. The 12V charger supports a maximum charge current of 6A, while the 24V charger supports a maximum charge current of 3A.
Performance and Characteristics:
- Utilizes a switching power structure design, offering a wide range of AC voltage input, compact size, lightweight, and high efficiency.
- Employs a two-stage charging method (initially constant current and then constant voltage) that fully considers the charging properties of lead-acid batteries, preventing overcharging and extending battery life to the fullest.
- Equipped with short circuit and reverse connection protection.
- Enables adjustment of charging voltage and current via on-site potentiometer settings.
- Features LED display indicators for power and charging status.
- BAV06A designed for easy horizontal installation.
- BAC06V designed for vertical installation, minimizing installation dimensions.
