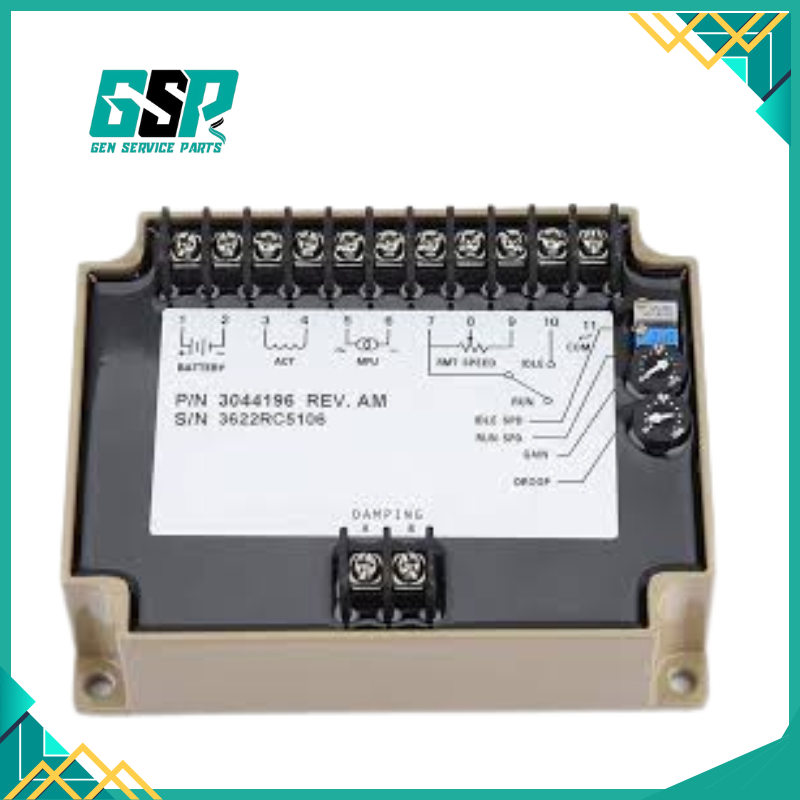

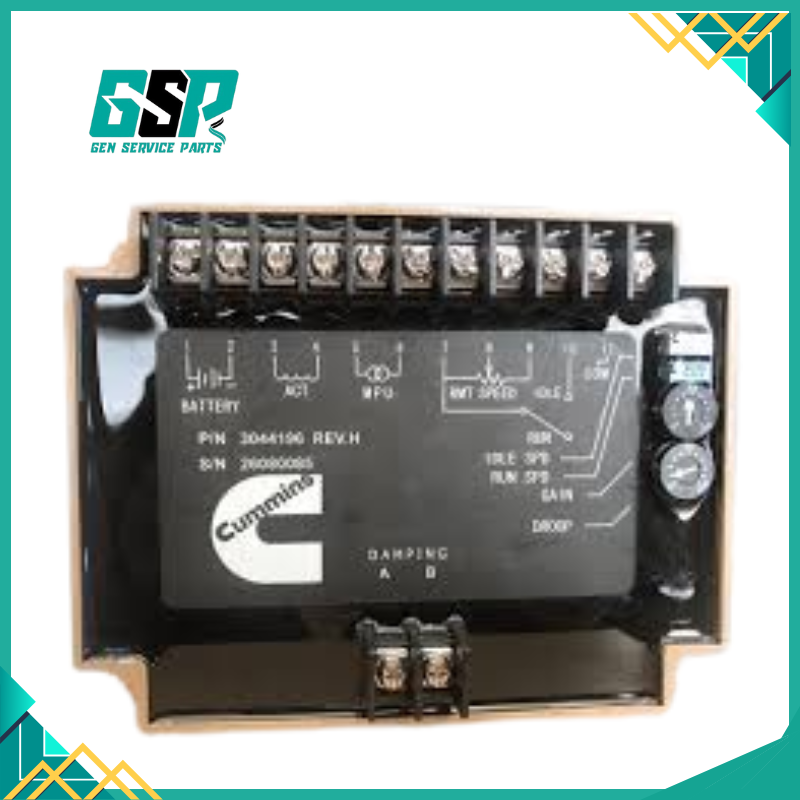

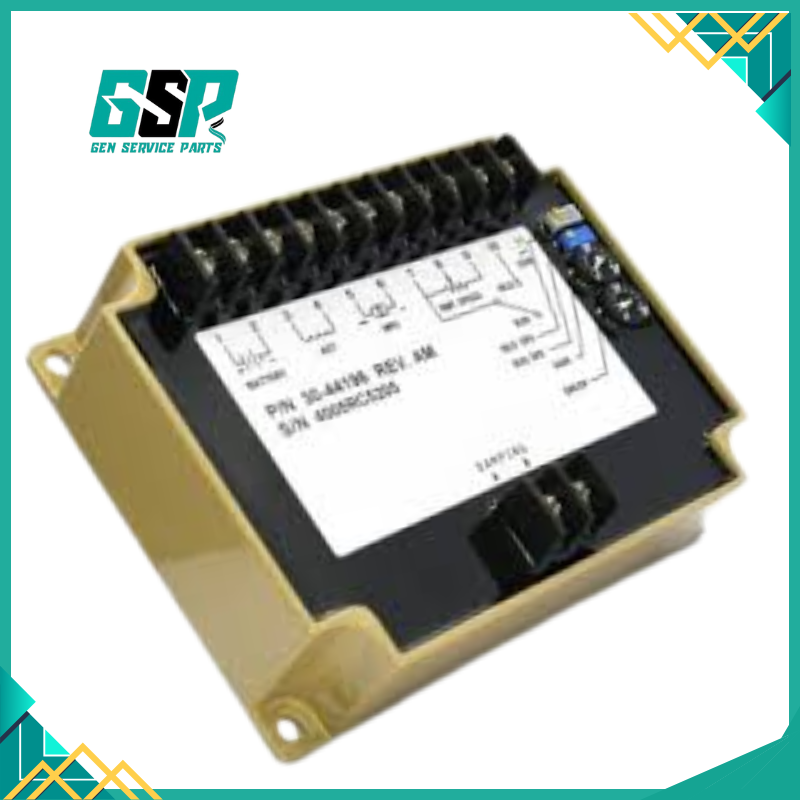

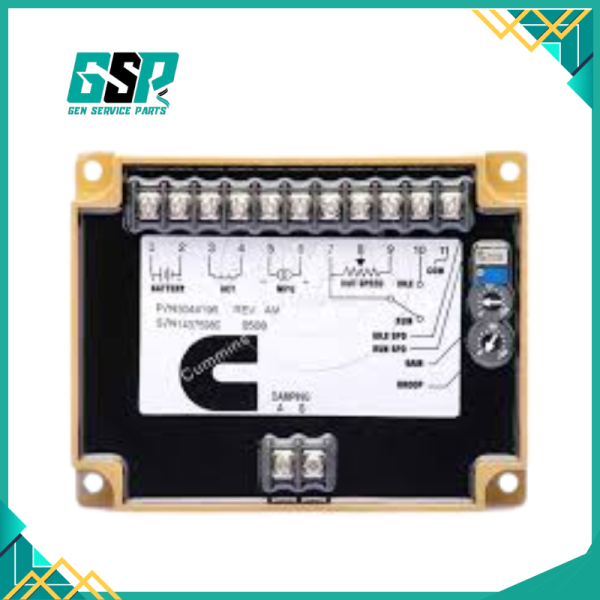

CUMMINS EFC SPEED CONTROLLER- 3044196
SPECIFICATIONS & PERFORMANCE of Cummins 3044196 Speed Governor:
Operating Voltage: 12 or 24 volts ±20%
Steady State Speed Band: ±0.25%
Ambient Operating Temperature: -40℃ to +85℃
Temperature Stability: Better than ±0.5% over temperatures of -40℃ to +125℃
Mechanical Vibration: Withstands the following vibration without failure or degraded , performance: 0.06 inch double amplitude at 5 to 18 Hz; 1 G at 18 to 30 Hz
Connections: Terminal strip
Enclosure: Die cast aluminum
Weight: 635 grams (1.4 lbs.) Magnetic Pickup Frequency Range: 2500 – 5000 Hz Output Signal: PWM current to 5A at max.
Actuator Compatibility: EFC3408324, DYNA2000, DYNA2500
SPECIFICATION of 3044196 Cummins EFC Speed Controller: |
|
| RPM Stability: | <±0.25% |
| Speed Range: | 1KHz ~ 6.5KHz |
| Thermal Stability: | Max ±0.7% |
| IDLE Regulation: | 260 ±20Hz |
| DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp |
| Maximum: 400Hz ±75Hz/ 1 Amp | |
| External Speed Regulation: | ±200Hz (with 1 KΩ connected) |
| AUX Input Sensitivity: | 148Hz / 1V., ±10Hz |
| Impedance: | 1MΩ |
| Working Temp Range: | -40 ~ 85 °C |
| ENVIRONMENT: | |
| Working Humidity Range: | Maximum 95% |
| Stocking Temp: | -55 ~ 92 °C |
| Shocking: | 20-100HZ 500mm/Sec. |
| INPUT POWER PROVIDE: | |
| Voltage: | 24V |
| Grounding Pole: | Negative pole |
| Power Provide: | 40mA |
| Actuator Continuous Current: | Minimum 1A, Maximum 4.5A |
| MPU: | |
| Signal: | 2 ~ 120V RMS |
| SPECIFICATION: | |
| RPM Stability: | <±0.25% |
| Speed Range: | 1KHz ~ 6.5KHz |
| Thermal Stability: | Max ±0.7% |
| IDLE Regulation: | 260 ±20Hz |
| DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp |
| Maximum: 400Hz ±75Hz/ 1 Amp | |
| External Speed Regulation: | ±200Hz (with 1 KΩ connected) |
| AUX Input Sensitivity: | 148Hz / 1V., ±10Hz |
| Impedance: | 1MΩ |
| Working Temp Range: | -40 ~ 85 °C |
| ENVIRONMENT: | |
| Working Humidity Range: | Maximum 95% |
| Stocking Temp: | -55 ~ 92 °C |
| Shocking: | 20-100HZ 500mm/Sec. |
| INPUT POWER PROVIDE: | |
| Voltage: | 12V or 24V |
| Grounding Pole: | Negative pole |
| Power Provide: | 40mA |
| Actuator Continuous Current: | Minimum 1A, Maximum 4.5A |
| MPU: | |
| Signal: | 2 ~ 120V RMS |
