MEBAY Genset Controllers for Generator in Bangladesh!

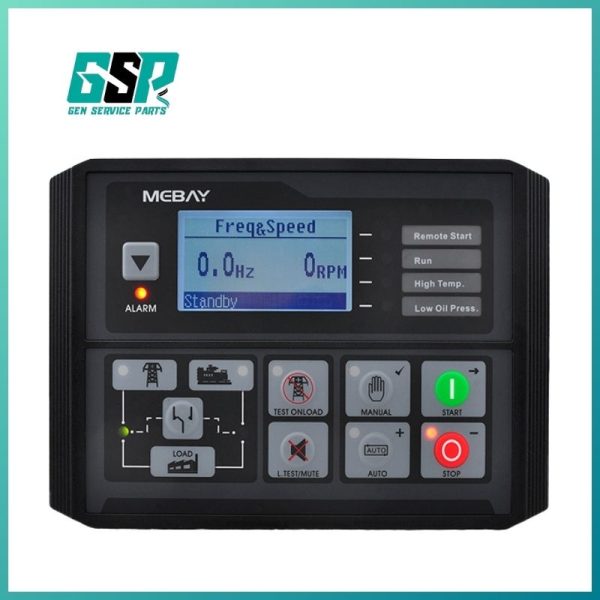

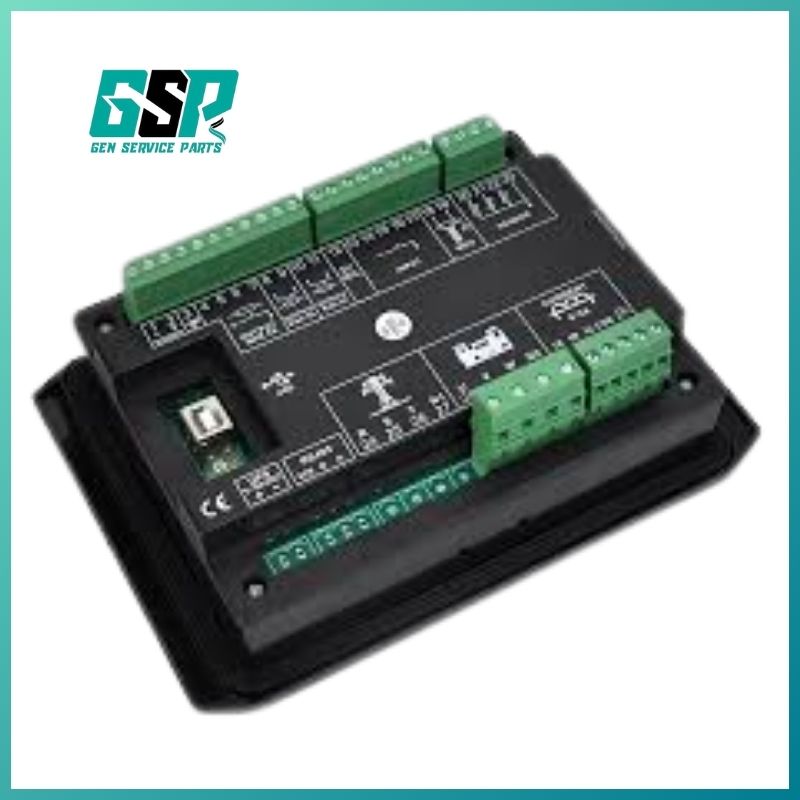

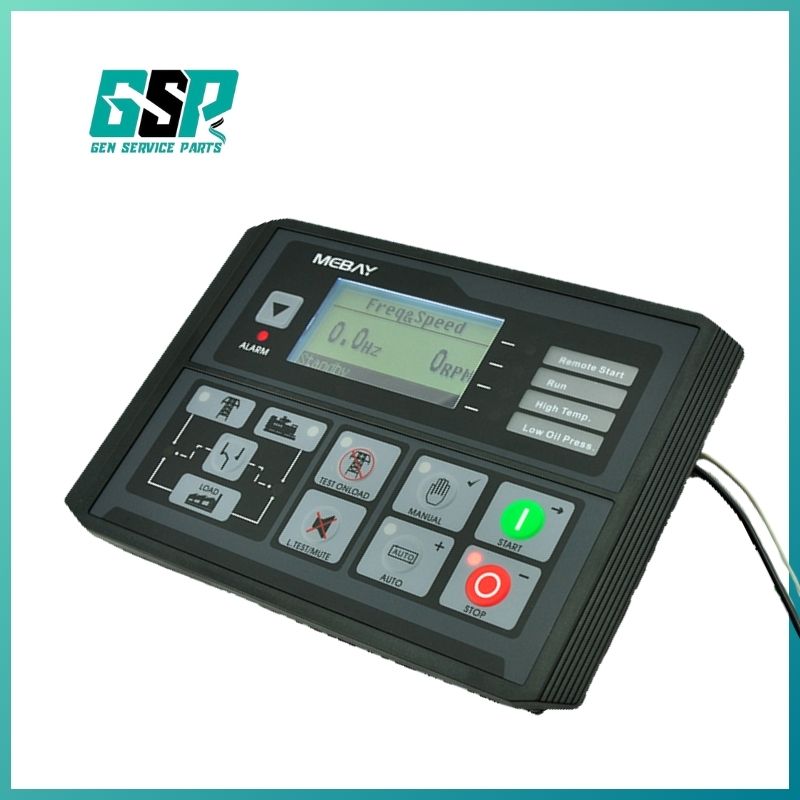

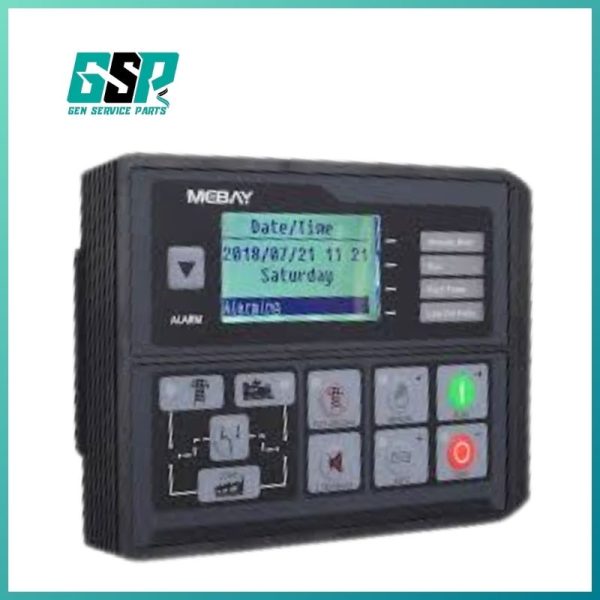

This Mebay controller series is specifically designed for Diesel/Gasoline/Gas Genset operations, encompassing start/stop functions, parameter monitoring, fault detection, and data configuration. Featuring a 3-inch LCD screen, it can simultaneously display multiple faults, prompting genset shutdown in case of operational issues. Offering Chinese/English interface options with additional languages available upon request, parameters can be configured via front-facing buttons or programmable interfaces (USB/RS485) for PC adjustments. Versatile and adaptable, it suits various genset auto control systems.
Specifications:
| Options | Parameters |
| Working voltage | DC8V~36V Continuous |
| Power consumption | Standby：24V：MAX 1W |
| Working：24V：MAX 5W | |
| AC Voltage Input | 1P2W 50VAC-276VAC(ph-N) |
| 2P3W 50VAC-276VAC(ph-N) | |
| 3P4W 50VAC-276VAC(ph-N) | |
| Rotate speed sensor Frequency | 50-9000Hz |
| MAX Accumulating Time | 99999.9Hours（Min Store time:6min） |
| Fuel Relay Output | 5Amp DC+VE Supply voltage |
| Start Relay Output | 5Amp DC+VE Supply voltage |
| Programmable Relay output 1 | 5Amp DC+VE Supply voltage |
| Programmable Relay output 2 | 5AMP Non-contact-Normal open–Normal close output |
| Programmable Relay output 3 | 5AMP Non-contact Normal Open output |
| Programmable Relay output 4 | 5AMP Non-contact normal open output |
| Excitation output | Max 1AMP DC+VE supply voltage |
| Switch value input | Available if connecting with Battery – |
| Working condition | -25-65℃ |
| Storage condition | -40-85℃ |
| Protection Level | IP65：when waterproof rubber gasket is added between controller and its panel |
| Overall dimension | 189mm×134mm×50mm |
| Panel cutout | 160mm×120mm |
| Weight | 0.68Kg |
