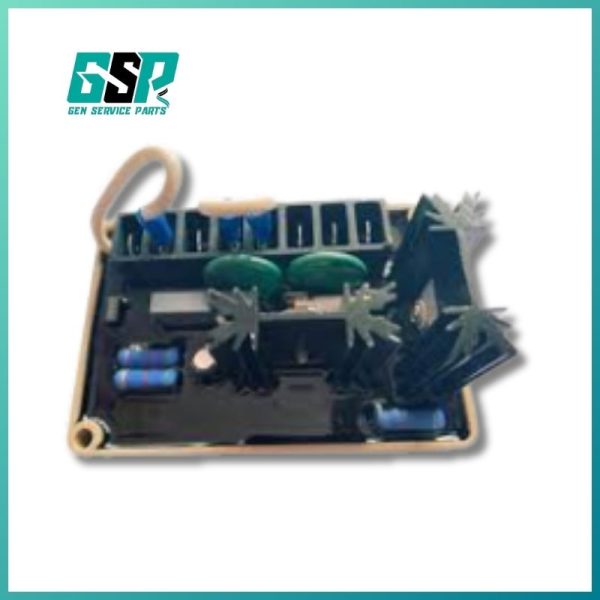

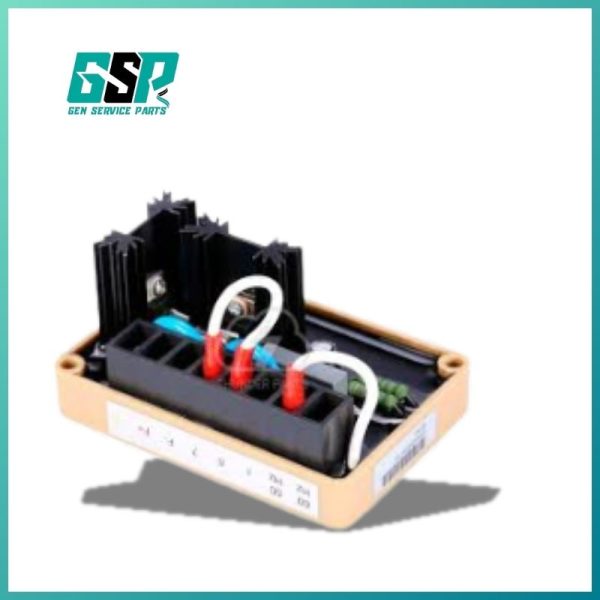

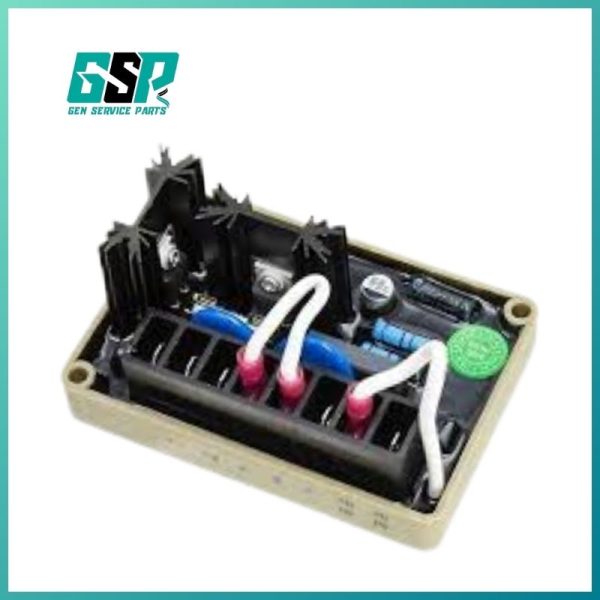

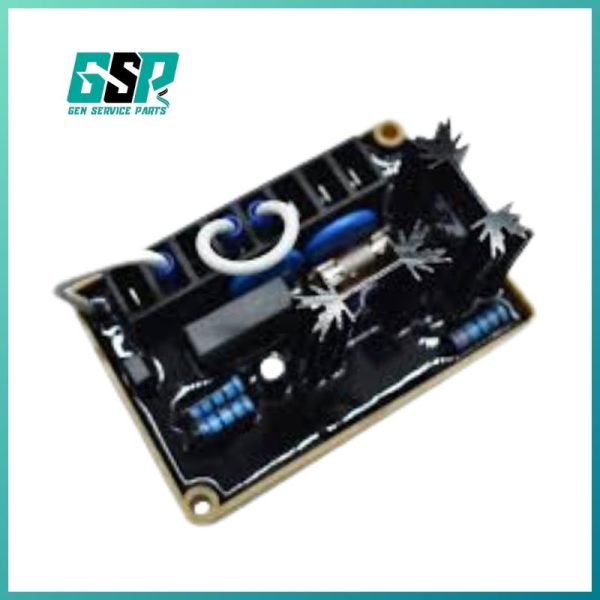

Automatic Voltage Regulator (AVR) for Generator- AVR SE350
- Sensing & Power Input: 190 – 240 Vac Burden: 500 VA
- Output Power – Continuous: 73 Vdc at 3.5 Adc (255w) | Output Power – Forcing (240 Vac Input Power): 105 Vdc at 5 Adc (525w) | Regulation: 1.0%
- Remote Voltage adjustment Range: ±10% with 2000 ohm rheostat | ±5% with 1000 ohm rheostat
- Frequency Compensation: Adjustable Roll off frequency: 54 – 64 Hz for 60 Hz | 45 – 51 Hz for 50 Hz | Operation: Weight 6.5 oz
- Operating Temperature: -40°C to + 60°C | Storage Temperature: -60°C to + 85°C | Power Dissipation: 8 watts maximum
Specifications:
| Sensing & Power Input: | 190 – 240 Vac | Burden: 500 VA |
| Output Power – Continuous: | 73 Vdc at 3.5 Adc (255w) |
| Output Power – Forcing: | 105 Vdc at 5 Adc (525w) |
| Regulation: | 1.0% |
| Remote Volt. adjustment Range: | ±10% with 2000 ohm rheostat. ±5% with 1000 ohm rheostat |
| Frequency Compensation: | Adjustable Roll off frequency: 54 – 64 Hz for 60 Hz. 45 – 51 Hz for 50 Hz |
| Operation: | Weight 6.5 oz |
| Operating Temperature: | -40°C to + 60°C |
| Storage Temperature: | -60°C to + 85°C |
| Power Dissipation: | 8 watts maximum |
