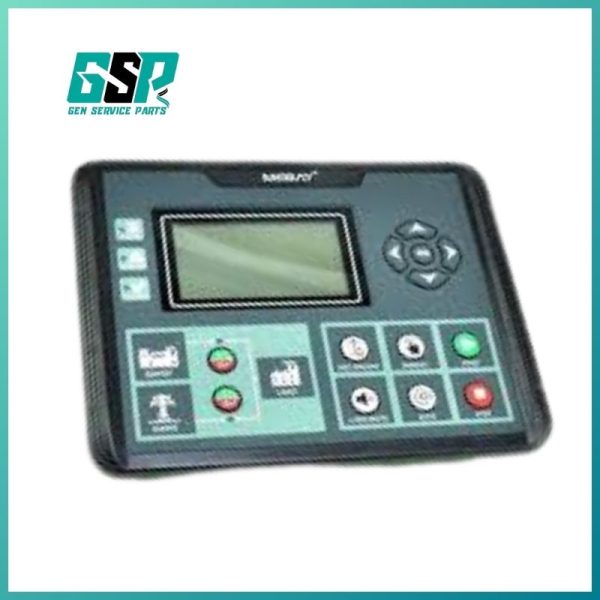

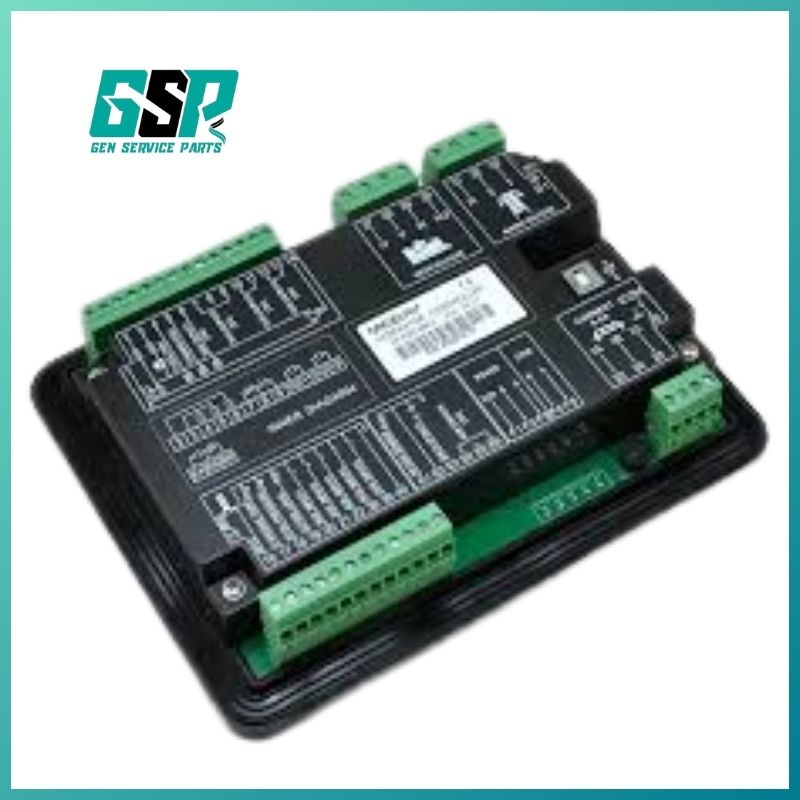

MEBAY Genset Controllers for Generator | DC50D MK3 in Bangladesh!

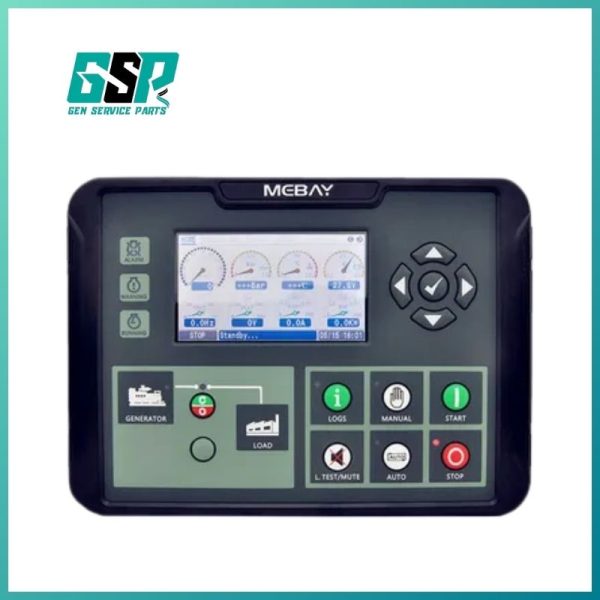

This Mebay controller series is tailored for Diesel/Gasoline/Gas Genset operations, including start, stop, parameter monitoring, fault-checking, and data configuration. Featuring a 3.5-inch LCD screen with a new UI design, it directly displays relevant failures and parameters through simulated indicators and text. Offering Chinese/English interface options with additional languages available upon request, it allows for parameter configuration via front-facing buttons or programmable interfaces (RS485/USB) for PC adjustments. Versatile and adaptable, it suits various genset auto control systems.
Parameters
| Options | Parameters |
| Working voltage | DC8V—-36V Continuous |
| Power consumption | Standby：24V：MAX 1W |
| Working：24V：MAX5W | |
| AC Voltage Input | 1P2W 30VAC-276VAC (ph-N) |
| 2P3W 30VAC-276VAC (ph-N) | |
| 3P4W 30VAC-276VAC (ph-N) | |
| Rotate speed sensor Frequency | 50-10000Hz |
| MAX Accumulating Time | 99999.9Hours（Min Store time:6min） |
| Fuel Relay Output | Max 16Amp DC+VE Supply voltage |
| Start Relay Output | Max 16Amp DC+VE Supply voltage |
| AUX. output 1 | Max 5Amp DC+VE Supply voltage |
| AUX. output 2 | Max 5Amp Non-contact normal open or normal close output |
| AUX. output 3 | 5AMP Non-contact normal open output |
| PAUX. output 4 | 5AMP Non-contact normal open output |
| Excitation output | Max 1AMP DC+VE supply voltage |
| Switch value input | Available if connecting with Battery – |
| Working condition | -25-65℃ |
| Storage condition | -40-85℃ |
| Protection Level | IP65：when waterproof rubber gasket is added between controller and its panel |
| Insulation strength | Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. |
| Overall dimension | 210mm*160mm*50mm |
| Panel cutout | 186mm*142mm |
| Weight | 0.85Kg |
